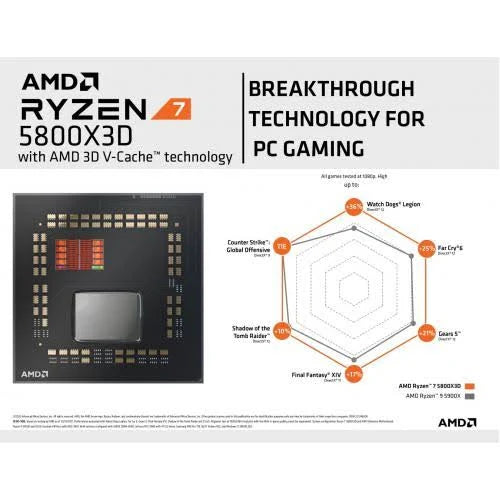

The AMD Ryzen™ 7 5800X3D unleashes an average of 15% more gaming performance with AMD 3D V-Cache™ technology.

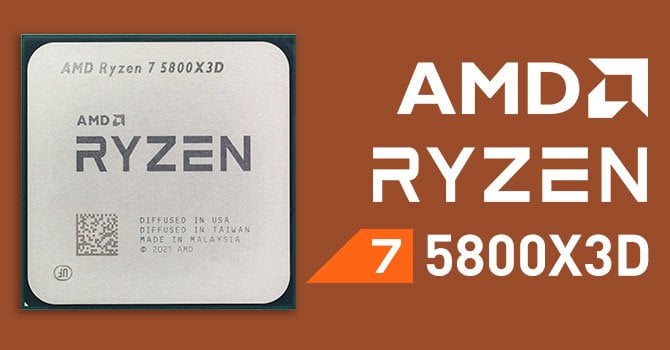

Name: AMD Ryzen™ 7 5800X3D
Family: Ryzen
Series: Ryzen 5000 Series

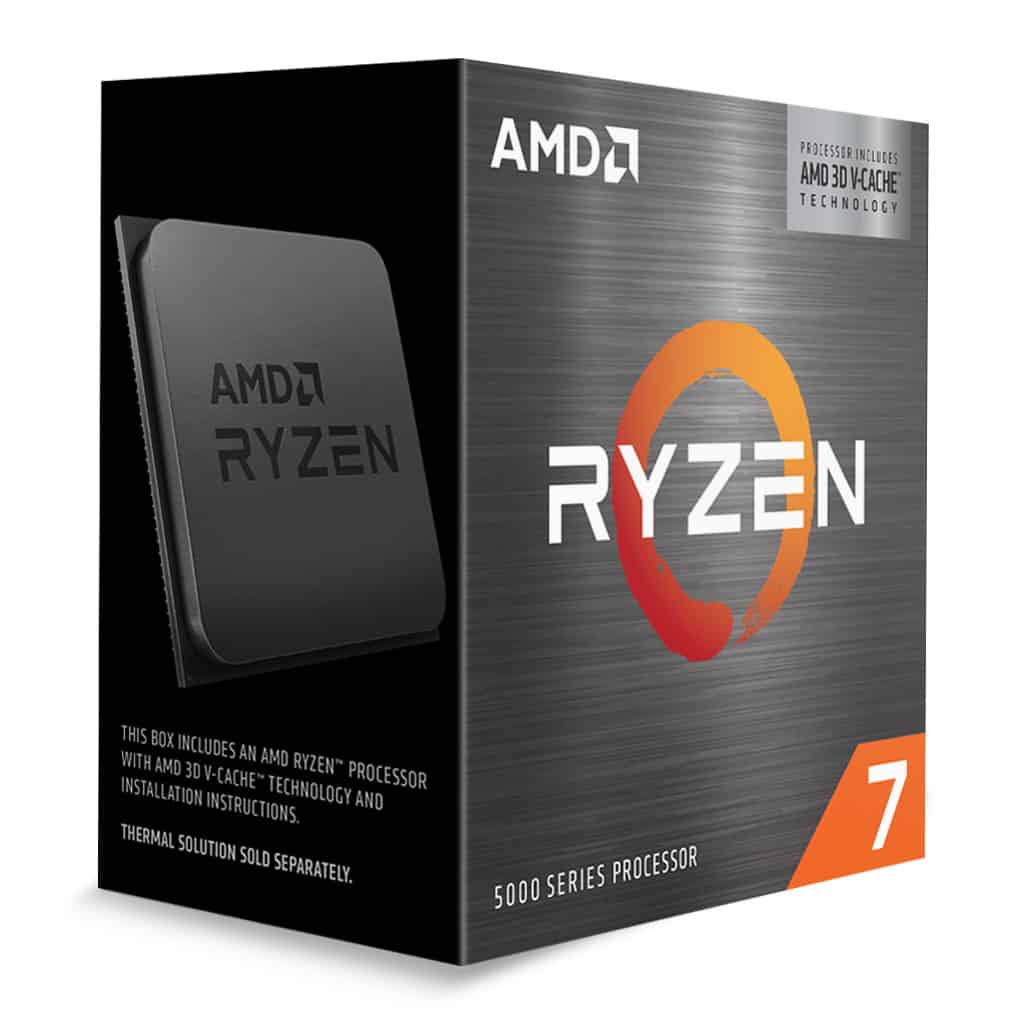

Form Factor: Desktops , Boxed Processor
Market Segment: Enthusiast Desktop
AMD PRO Technologies: No
Consumer Use: Yes
Architecture: Zen 3
# of CPU Cores: 8
Multithreading (SMT): Yes
# of Threads: 16
Max. Boost Clock: Up to 4.5 GHz
Base Clock: 3.4 GHz
L1 Cache: 512 KB
L2 Cache: 4 MB
L3 Cache: 96 MB
Default TDP: 105W
Processor Technology for CPU Cores: TSMC 7nm FinFET
Processor Technology for I/O Die: 12nm (Globalfoundries)
CPU Compute Die (CCD) Size: 74mm²
I/O Die (IOD) Size: 125mm²
Package Die Count: 1
CPU Socket: AM4
Supporting Chipsets: X570 , X470 , B550 , B450 , A520
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB): Not Included
Recommended Cooler: Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax): 90°C
*OS Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
