Whatever the setting, whatever the resolution, lead your team to victory with this incredible gaming processor. Plus, enjoy the benefits of next-gen AMD 3D V-Cache™ technology for low latency and even more game performance.1

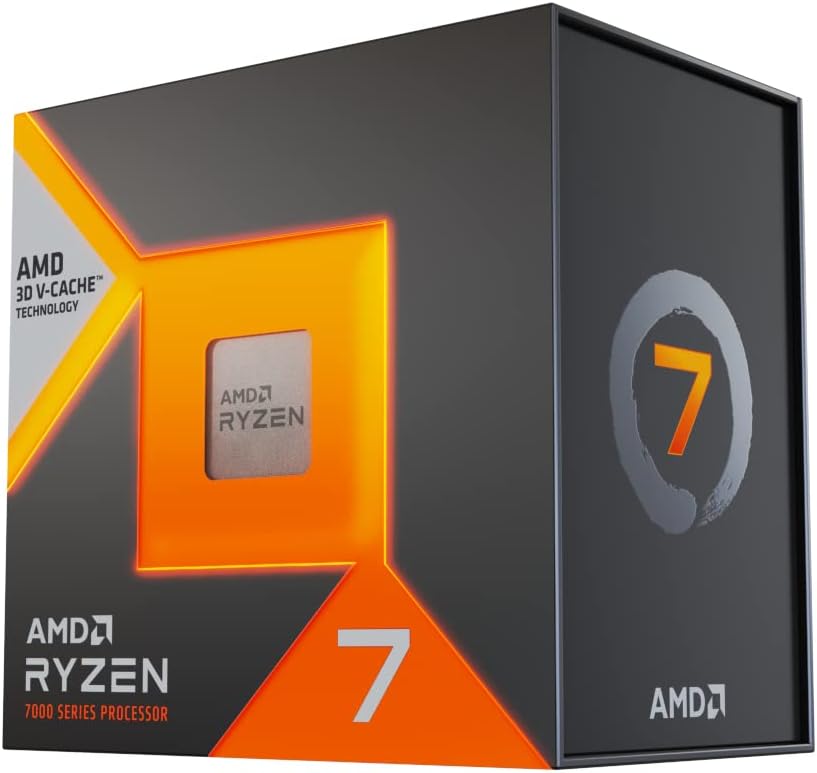

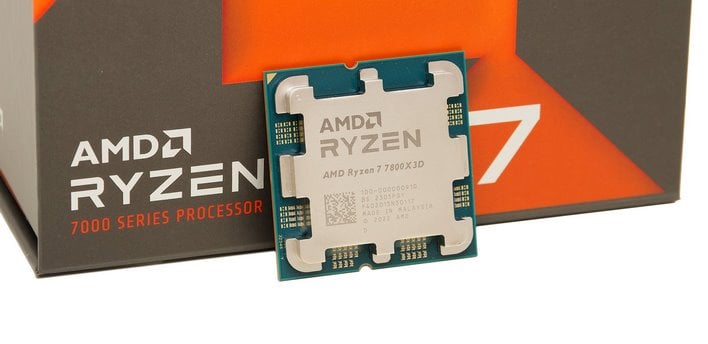

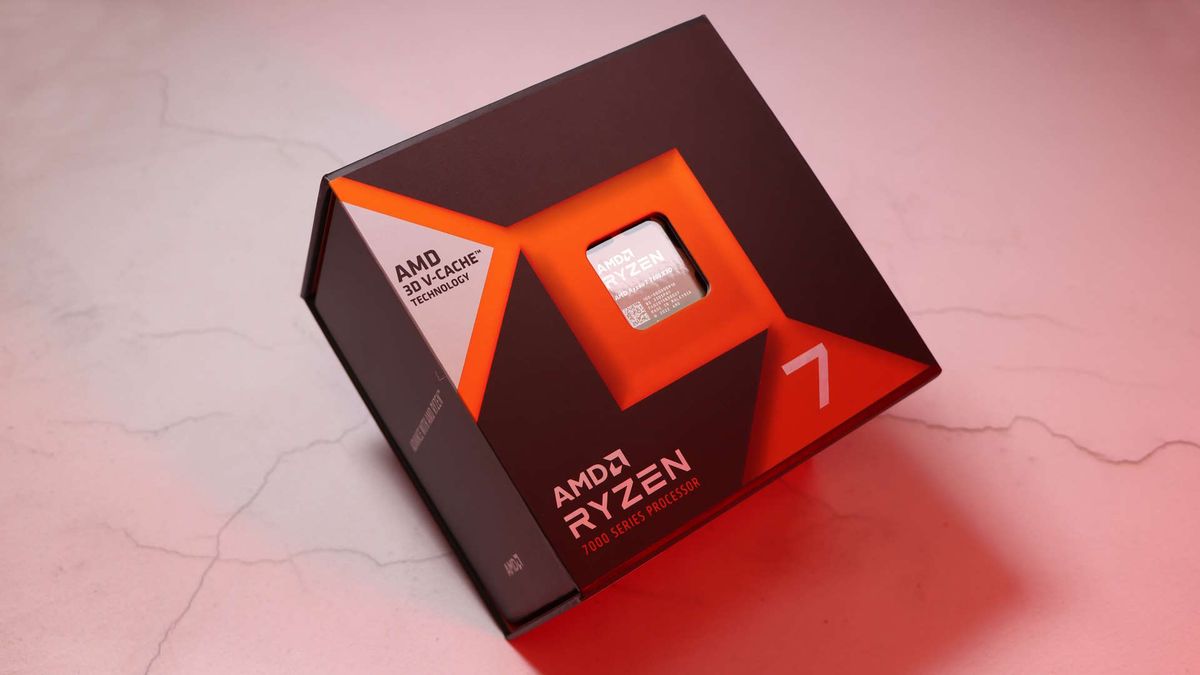

Name: AMD Ryzen™ 7 7800X3D
Family: Ryzen
Series: Ryzen 7000 Series
Form Factor: Desktops, Boxed Processor
Market Segment: Enthusiast Desktop
AMD PRO Technologies: No
Consumer Use: Yes
Architecture: Zen 4
# of CPU Cores: 8
Multithreading (SMT): Yes
# of Threads: 16
Max. Boost Clock: Up to 5 GHz
Base Clock: 4.2 GHz
L1 Cache: 512 KB
L2 Cache: 8 MB
L3 Cache: 96 MB
Default TDP: 120W
Processor Technology for CPU Cores: TSMC 5nm FinFET
Processor Technology for I/O Die: TSMC 6nm FinFET
CPU Compute Die (CCD) Size: 71mm²
I/O Die (IOD) Size: 122mm²
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes
Package Die Count: 2
CPU Socket: AM5
Supporting Chipsets: A620 , X670E , X670 , B650E , B650
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB): Not Included
Recommended Cooler: Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax): 89°C
*OS Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
