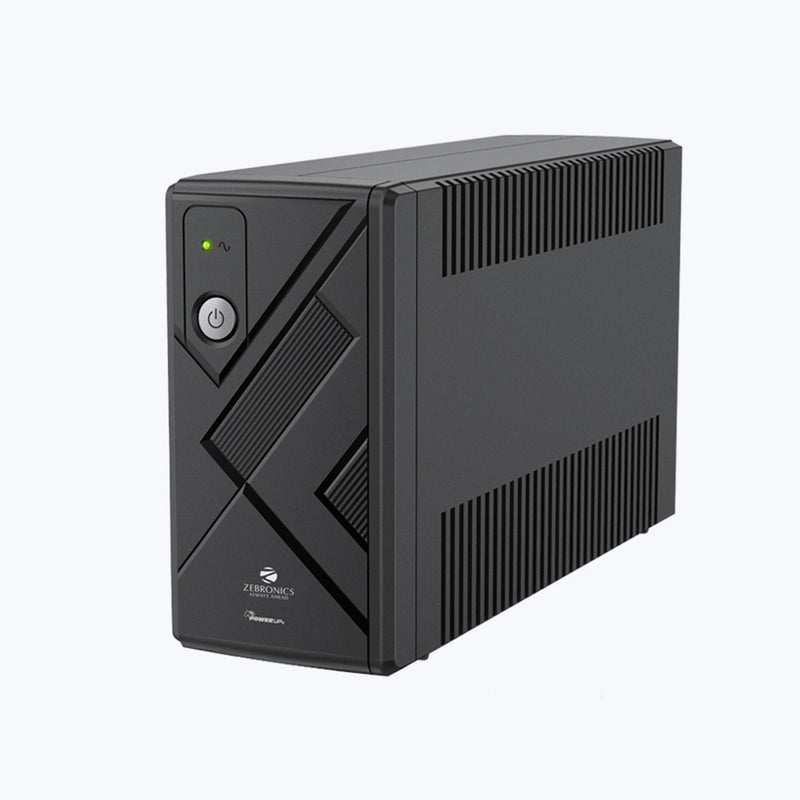

Zeb-U775 is a line-interactive UPS that is Micro-controller based with overload protection, generator compatible, Boost & Buck AVR, sleep mode charging, wide input range and more.
Zeb-U775 is a line-interactive UPS that is Micro-controller based with overload protection, generator compatible, Boost & Buck AVR, sleep mode charging, wide input range and more. Digital Display:No

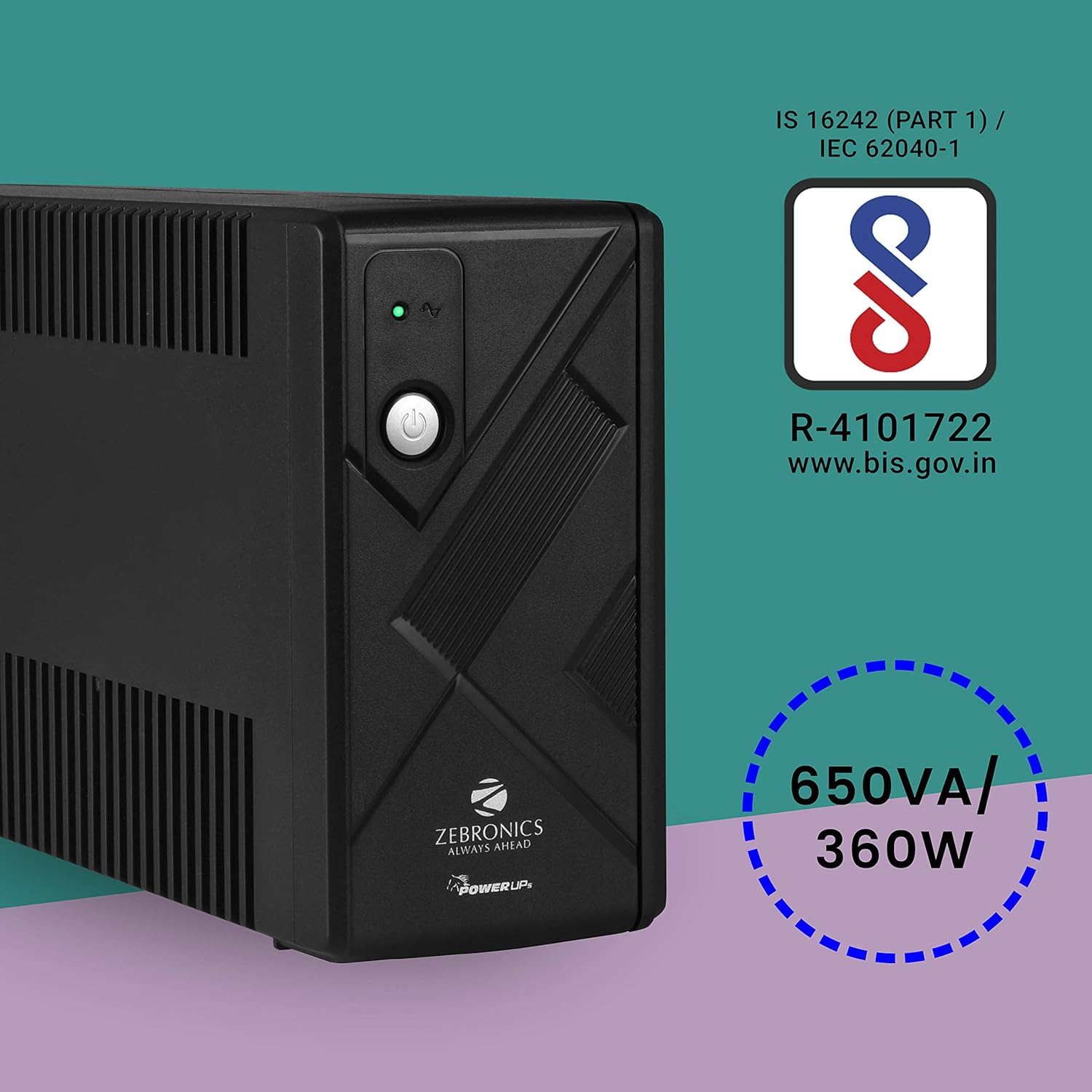

Capacity (VA/W) 650VA/360W. The ups is not compatible with router.Ups need to be charged for 4hrs for backup
Input Nominal voltage 220-240 VAC Voltage range 140-300 VAC ± 7 Vac Frequency 40-70 Hz ± 1 Hz Plug type 3 Pin plug
Output Voltage range (AC mode) 195-262Vac ±7Vac Voltage range (Batt. mode 230VAC ± 10 % Frequency range (Batt. mode) 50/60Hz ±1%

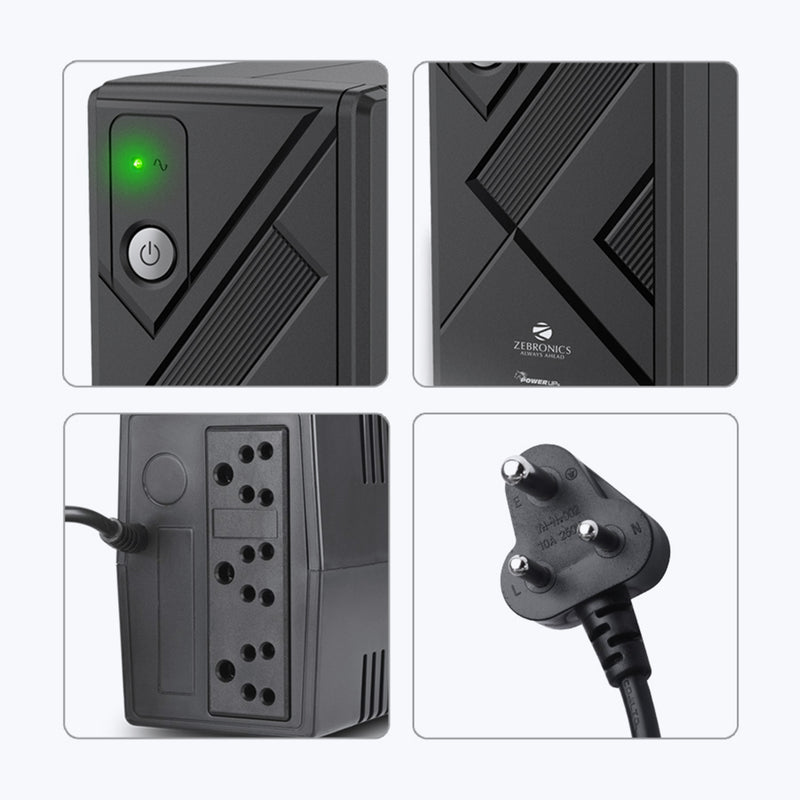

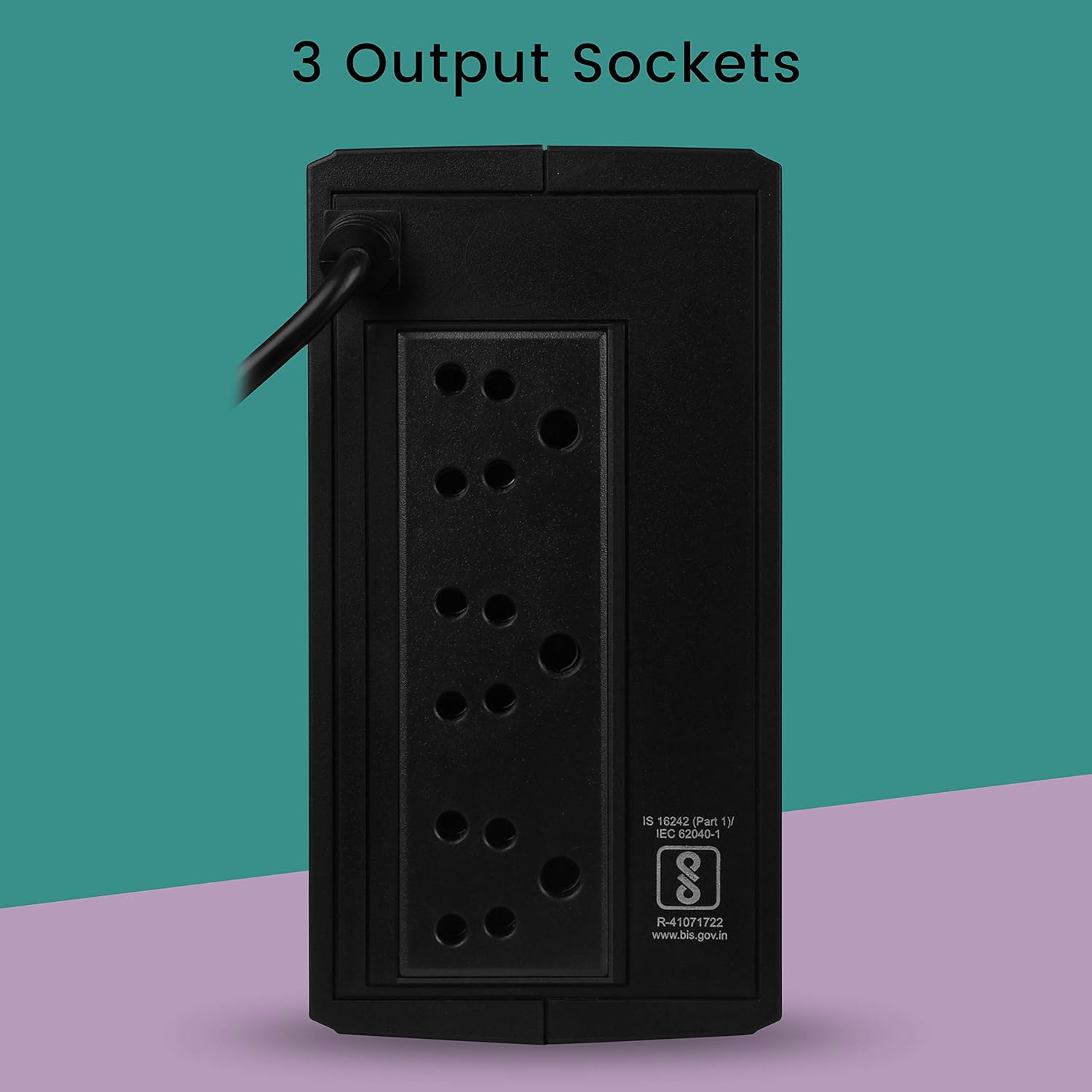

Transfer time 4ms TYP Waveform Simulated sine wave No. of output sockets 3 Protections Overload, Short circuit, Over discharge & Over charge
Battery Battery type 12V 7Ah x 1 no Charging current 12V 7Ah x 1 no Recharge time 4 hours to charge 90%

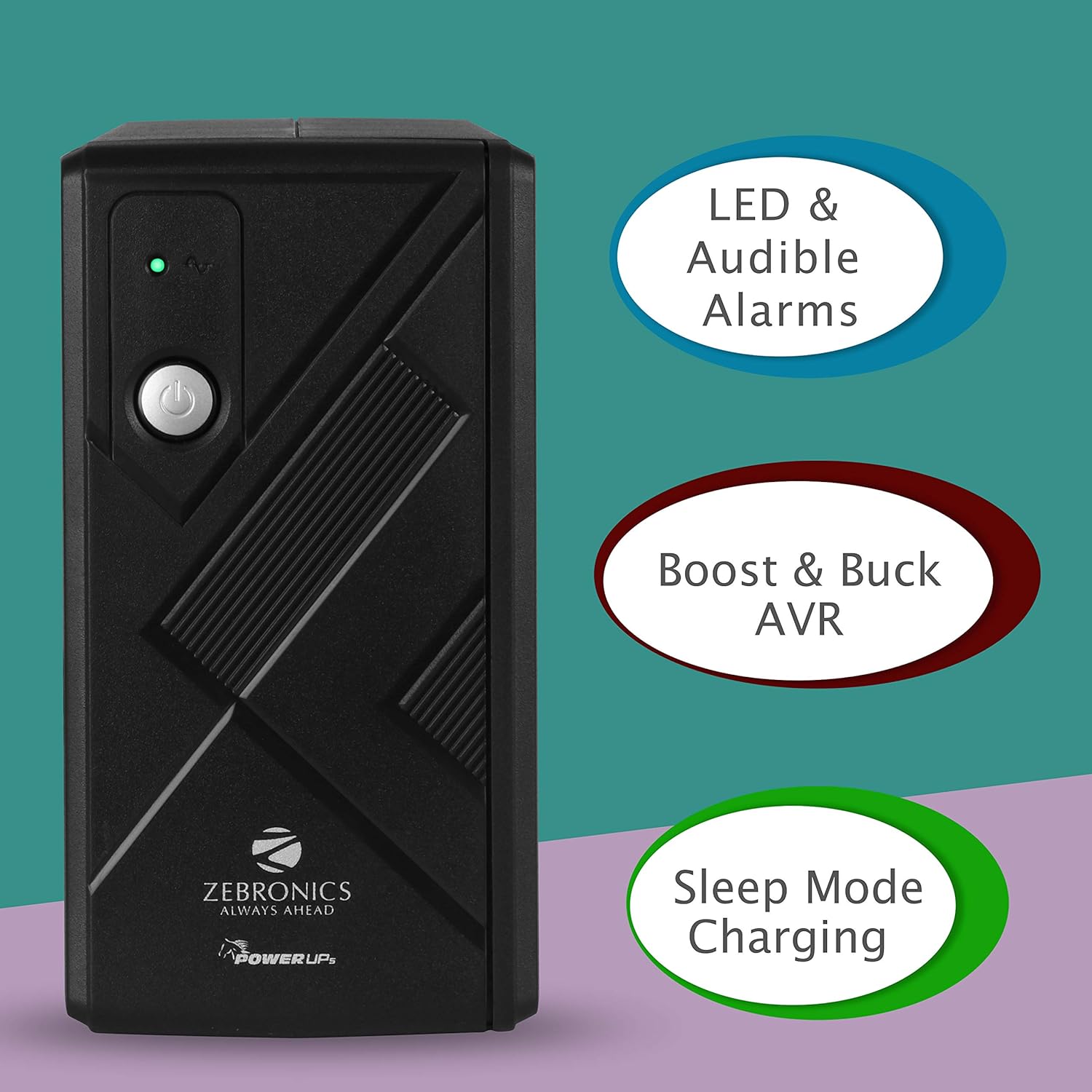

Indicators No. of LEDs 1 LED AC mode Green lighting Battery mode Green flashing

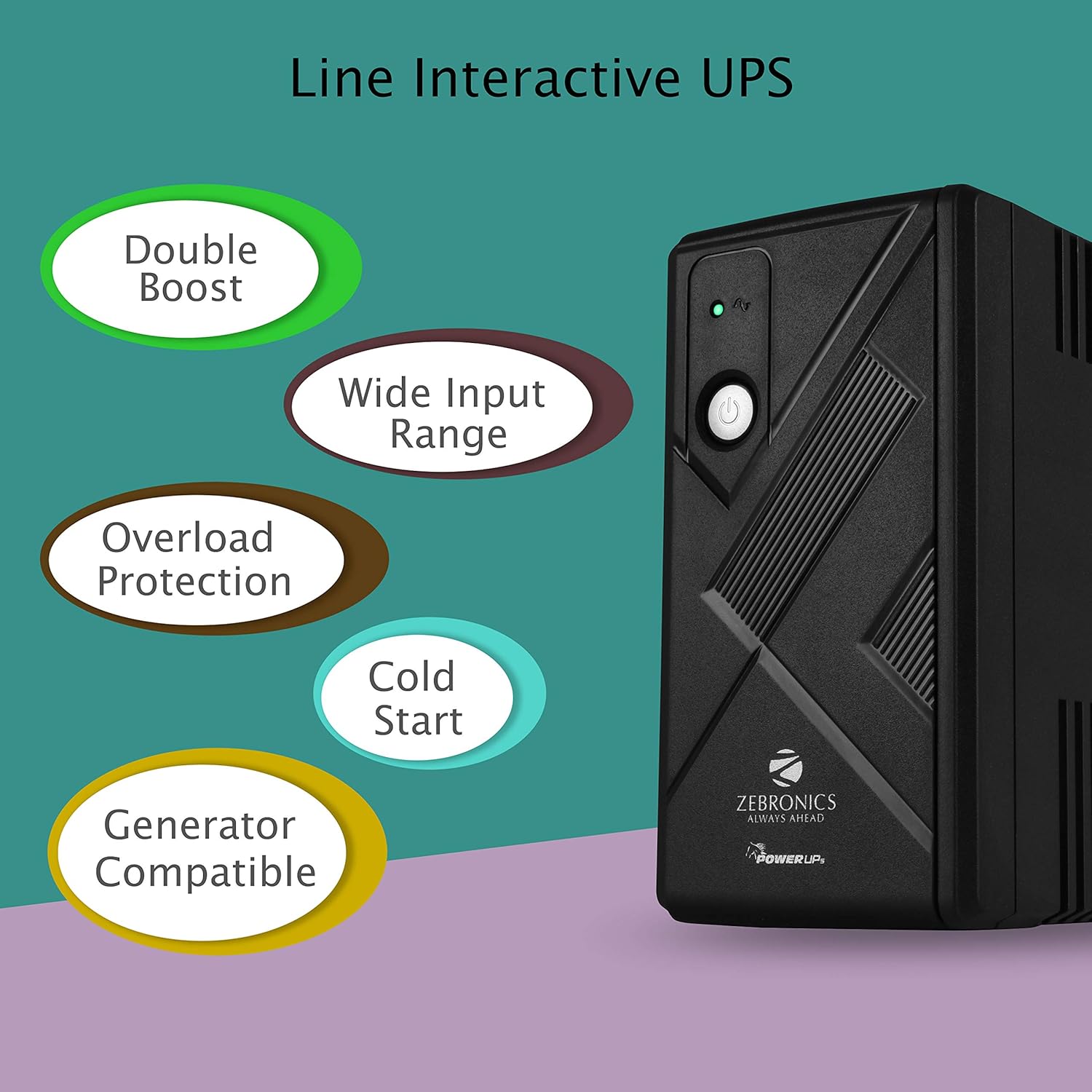

Alarm Battery mode Beeping every 30 seconds Low battery Beeping every 2 seconds Overload Beeping every 0.5 seconds Fault Continuous beeping.Environmental factors Operational temperature 0-40 degree C Noise level < 40dBFEATURES Line interactive UPS Auto restart while AC is recovering Double boost Automatic voltage regulation (AVR) Wide input range Microcontroller based Generator compatible.
